Gallery No 13 - Liberator

Aircraft - 1 Images

My thanks to Roger Dunn and the MOD for supplying these images.Wikipedia for text.

SPECIFICATIONS

Consolidated-Vultee B-24D-85-CO Liberator

Type: heavy bomber with crew of 10
Powerplant: four 1,200-hp (895-kW) Pratt & Whitney R-1830-43 Twin Wasp radial piston engines
Performance: maximum speed 303 mph (488 km/h); initial climb 1,100 ft (335 m) per minute; operating radius with 5,000-lb (2268-kg) bomb load 1,080 miles (1730 km)
Weights: empty 33,980 Ib (15413 kg); maximum take-off 60,000 lb (27216 kg)
Dimensions: span 110 ft 0 in (33.52 m); length 66 ft 4 in (20.22 m); height 17 ft 11 in (5.46 m); wing area 1,048 sq ft (97.36 m2)
Armament: one (usually three) 0.5-in (12.7-mm) nose gun, two in dorsal turret, two in tail turret, two in retractable ball turret and two in waist positions; plus a maximum internal bomb load of 8,000 lb (3629 kg)



Some aircraft may appear identical but there are differences which will not be discernible from the image.

(Be patient with loading)

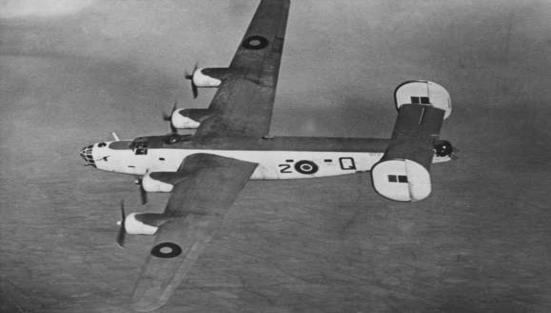

203 Squadron
