Gallery No 25 - Avro Shackleton

Aircraft - 2 Images

My thanks to Roger Dunn, (Wikipedia for text) and the MOD for supplying these images.

The aircraft was designed by Roy Chadwick as the Avro Type 696. It was clearly based on the successful wartime Avro Lancaster bomber, one of Chadwick's designs and the Lancaster derivative the Avro Lincoln, which was the then current ASW aircraft. The design took the Lincoln's wings and landing gear and mated them with a new fuselage. The engines were Rolls-Royce Griffons with 13 feet (4 m) contra-rotating propellors, creating a distinctive engine noise and adding high-tone deafness to the hazards of the pilots. The first test flight was in March 1949 and front-line aircraft were delivered to Coastal Command in April 1951 and had their operational debut during the Suez Crisis.

The Mk. II was improved with feedback from operations and is considered by afficionados to be the definitive type. The radome was moved from the nose to a ventral position, to improve all-round coverage and minimise the risk of bird-strikes. Both the nose and tail sections were lengthened, the tail planes were redesigned and the weak undercarriage was strengthened.

The Mk. III was another redesign in response to crew complaints. A new tricycle undercarriage was introduced, the fuselage was increased in all main dimensions and had new wings with better ailerons and tip tanks. As a sop to the crews on fifteen hour flights the sound deadening was improved and a proper galley and sleeping space were included. Total take-off weight had risen by over 30,000 lb (13,600 kg) (Ph. III) and assistance from Rolls-Royce Viper 203 turbojets was needed on take-off (JATO). This extra strain told on the airframe and the flight life of the Mk. IIIs was sufficiently reduced that they were outlived by the Mk. IIs.

All marks suffered from using the Griffon engines - thirsty, noisy and temperamental, they were constantly on the cusp of being replaced but even the potentially beneficial Napier Nomad re-engine didn't quite happen.

In the ASW role, the Shackleton carried both types of sonobuoy, ESM, a diesel fume detection system and for a short time an unreliable magnetic anomaly detector (MAD) sytem. Weapons were nine bombs, or three torpedoes or depth-charges, and 20 mm cannon.

The need to replace the Shackleton was first raised in the early 1960s. The arrival of the Hawker-Siddeley Nimrod in 1969 was the end for the Shackleton in most roles but it continued as the main SAR aircraft until 1972. The intention to retire the aircraft was then thwarted by the need for AEW converage in the North Sea and northern Atlantic following the retirement of the Fairey Gannet. With a new design not due until the late 1970s the existing AN/APS-20 radar was installed in Mk. IIs as an interim measure, the AEW.2, from 1972. The disastrous Nimrod AEW replacement program dragged on and on and the eventual successor to the Shackleton did not arrive until the RAF finally gave in and purchased the E-3 Sentry in 1991.

A total of 185 Shackletons were built from 1951 to 1958: around twelve are still believed to be intact, with one still flying.

Description
Role Maritime patrol aircraft and airborne early warning
Crew 10
First Flight Entered Service
Manufacturer
Dimensions
Length 87 ft 4 in 26.61 m
Wingspan 120 ft 36.58 m
Height 17 ft 6 in 5.33 m
Wing Area 1421 ft² 132 m²
Weights
Empty 51,400 lb 23,340 kg
Loaded lb kg
Maximum Takeoff 86,000 lb 39,040 kg
Capacity
Powerplant
Engines 4 x Rolls-Royce Griffon 57
Power 4 x 1,960 hp 4 x 1,460 kW
Performance
Maximum Speed 300 mph 480 km/h
Combat Range miles km
Ferry Range miles km
Service Ceiling 20,200 ft 6,200 m
Rate of Climb ft/min m/min
Wing Loading lb/ft² kg/m²
Thrust/Weight
Power/Mass hp/lb kW/kg
Avionics
Avionics
Armament
Guns
Bombs 10,000 lb (4,540 kg) of bombs
Missiles
Rockets
Other

Some aircraft may appear identical but there are differences which will not be discernible from the image.

(Be patient with loading)

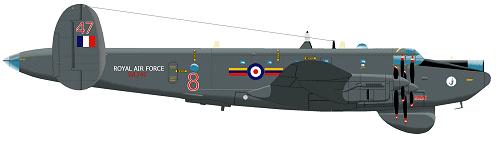

8 Squadron AEW2

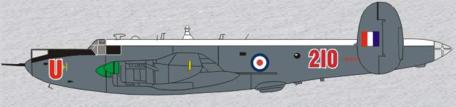

WG555 Mk11 Phase 2
