Gallery No 26 - Panavia Tornado

Aircraft - 4 Images

My thanks to Roger Dunn and the MOD for supplying these images.Wikipedia for the text.

The Panavia Tornado is a jet engine fighter-bomber jointly developed as the Multi-role combat aircraft - or MRCA - by Italy, Germany and the United Kingdom. It first flew on August 14th, 1974. International co-operation continued after its entry into service within the Tri-National Tornado Training Establishment, a tri-nation training and evaluation unit operating from RAF Cottesmore in Rutland in the English Midlands.

Crew: 2
Wing Span: (Variable geometry wing)
At 25° wing position : 13.91 m (45.6 ft)
At 67° wing position: 8.60 m (28.2 ft)
Wing Area: 26.6 m² (286 ft²)
IDS/ECR: 16.72 m (54.9 ft)
ADV: 18.7 m (61.3 ft)
Height: 5.95 m (19.5 ft)
empty (IDS): 14,091 kg (31,065 lb)
empty (ADV): 14,500 kg (32,000 lb)
maximum take-off: 28,000 kg (61,700 lb)
Engines: Two Turbo-Union RB199-34R afterburning turbofans, version depending on model:
Early IDS/GR.1: Mk 101, each with 36.5 kN (8,210 lbf) dry thrust or 72.5 kN (16,300 lbf) in reheat
Later IDS/GR.1/GR.3/GR.4: Mk 103, each with 43.8 kN (9,850 lbf) dry thrust or 76.8 kN (17,270 lbf) in reheat
ADV: Mk 104, each with 40.8 kN (9,170 lbf) dry thrust or 77.1 kN (17,330 lbf) in reheat
ECR: Mk 105, each with 44.0 kN (9,890 lbf) dry thrust or 83.0 kN (18,660 lbf) in reheat
Max. Speed: clean: 2,338 km/h (1,452 mph) (Mach 2.27)
Service Ceiling: 15,240 m (50,000 ft)
Ferry Range (four external tanks):
IDS: 3,890 km (2,420 mi)
ADV: 4,265 km (2,650 mi)
Combat radius, typical hi-lo-hi: 1,390 km (869 mi)
(GR1/GR1A, IDS) two or (F3, GR4) one Mauser BK-27 cannon with 180 rounds per gun; ECR and GR4A have no cannon
(GR.1/GR.1A, IDS) three fuselage pylons and four swiveling underwing pylons for a maximum of 9000 kg (19,800 lb) of weapons, fuel, and ECM pods; inner wing pylons have shoulder rails for two AIM-9 Sidewinder or ASRAAM self-defence missiles
(ADV) semi-recessed fuselage attachments for four BAe Skyflash or AMRAAM, four AIM-9 Sidewinder or ASRAAM on dual rails on inner wing pylon; outer wing pylons not usually fitted


Some aircraft may appear identical but there are differences which will not be discernible from the image.

(Be patient with loading)

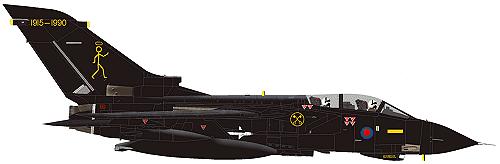

16 Squadron GR1

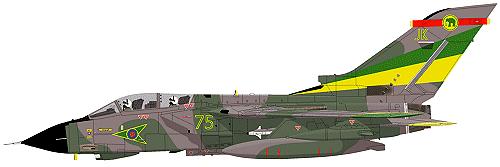

27 Squadron GR1

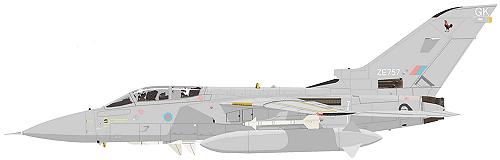

43 Squadron F3
13 Squadron GR4
